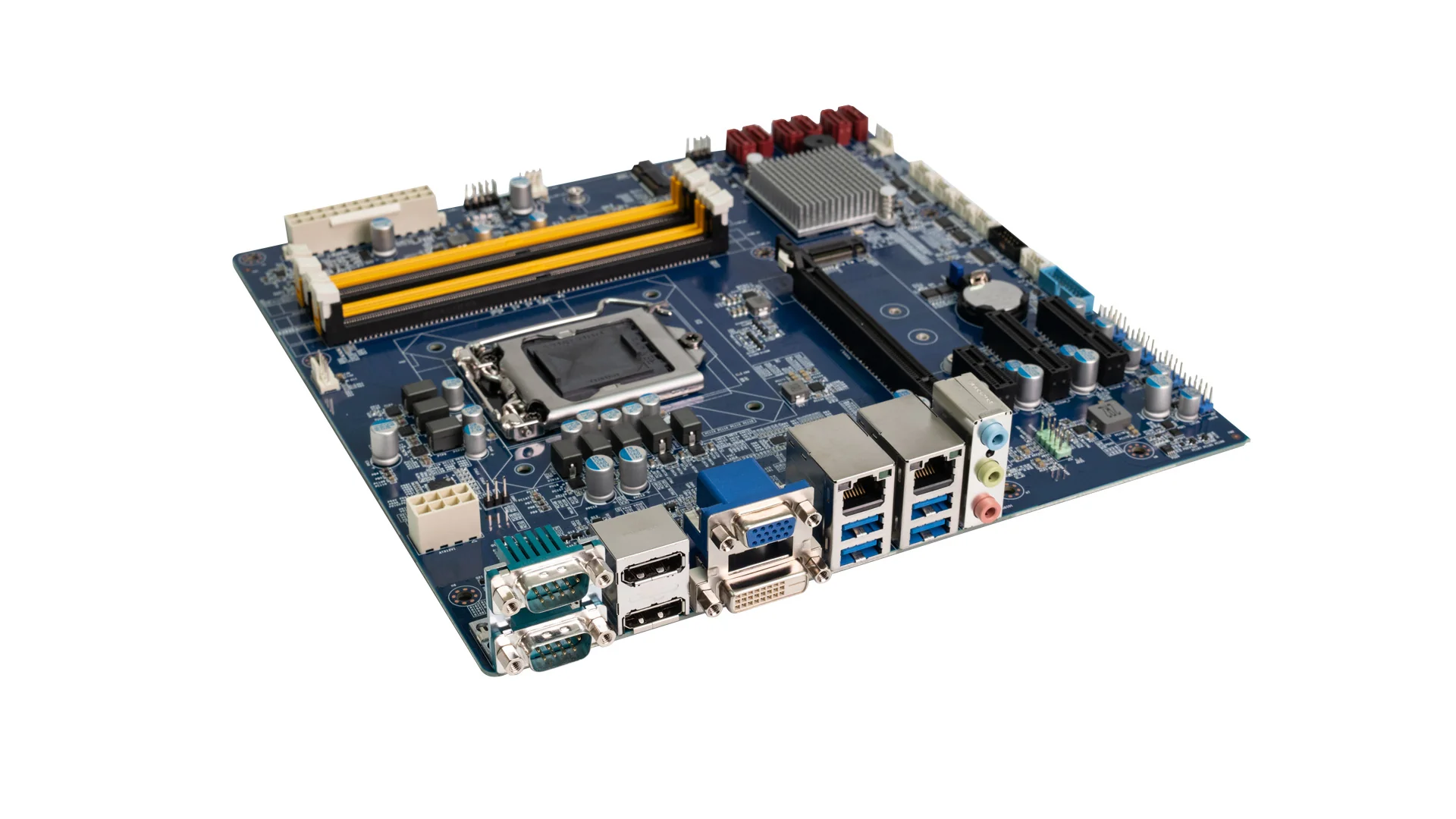

CT-MCL01 MicroATX Industrial Motherboard with LGA 1151 Socket supporting 8th/9th Gen Intel® Core™ i3/i5/i7 Processor, Q370

Product image 1
1 / 4

CT-MCL01 MicroATX Industrial Motherboard with LGA 1151 Socket supporting 8th/9th Gen Intel® Core™ i3/i5/i7 Processor, Q370

  • Support 8th/9th Gen. Intel® CFL-R S Processor (LGA 1151, 95W/65W/35W TDP)
  • Intel® Q370 chipset
  • 4x 288-pin DDR4 DIMM. Max. up to 128GB
  • 2x Intel® GbE (Support Wake-on-LAN and PXE)
  • Triple independent display supported by 1x VGA, 1x DVI-D, and 2x DisplayPort (DP1.2)
  • 1x PCIe x16 (Gen3), 2x PCIe x4 (Gen3), 1x PCIe x1 (Gen3)
  • 1x M.2 (M Key, NVMe PCIe x4, SATA, 2242/2260/2280); 1x M.2 (E Key, PCIe x2, USB 2.0, 2230)
  • 2x RS-232/422/485, 4x USB 3.1 Gen 1 Internal header: 1x USB 3.1 Gen 1, 7x USB 2.0, 4x RS-232
  • 6x SATA 6.0Gb/s
  • Intel® AMT 12.0 Supported
  • TPM 2.0 Supported
$113.40

Original: $378.00

-70%
CT-MCL01 MicroATX Industrial Motherboard with LGA 1151 Socket supporting 8th/9th Gen Intel® Core™ i3/i5/i7 Processor, Q370—

$378.00

$113.40

Product Information

Shipping & Returns

Description

  • Support 8th/9th Gen. Intel® CFL-R S Processor (LGA 1151, 95W/65W/35W TDP)
  • Intel® Q370 chipset
  • 4x 288-pin DDR4 DIMM. Max. up to 128GB
  • 2x Intel® GbE (Support Wake-on-LAN and PXE)
  • Triple independent display supported by 1x VGA, 1x DVI-D, and 2x DisplayPort (DP1.2)
  • 1x PCIe x16 (Gen3), 2x PCIe x4 (Gen3), 1x PCIe x1 (Gen3)
  • 1x M.2 (M Key, NVMe PCIe x4, SATA, 2242/2260/2280); 1x M.2 (E Key, PCIe x2, USB 2.0, 2230)
  • 2x RS-232/422/485, 4x USB 3.1 Gen 1 Internal header: 1x USB 3.1 Gen 1, 7x USB 2.0, 4x RS-232
  • 6x SATA 6.0Gb/s
  • Intel® AMT 12.0 Supported
  • TPM 2.0 Supported
