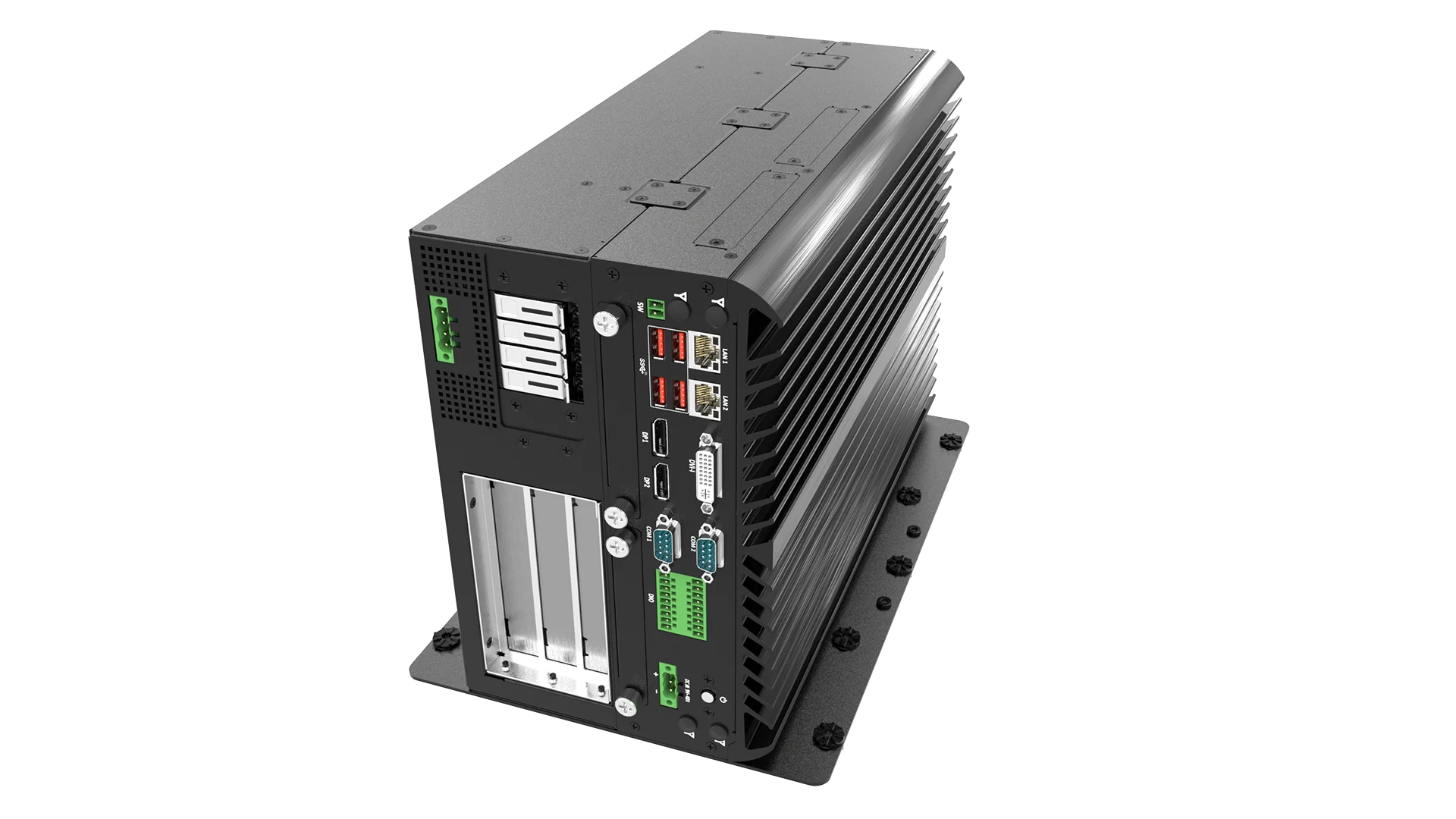

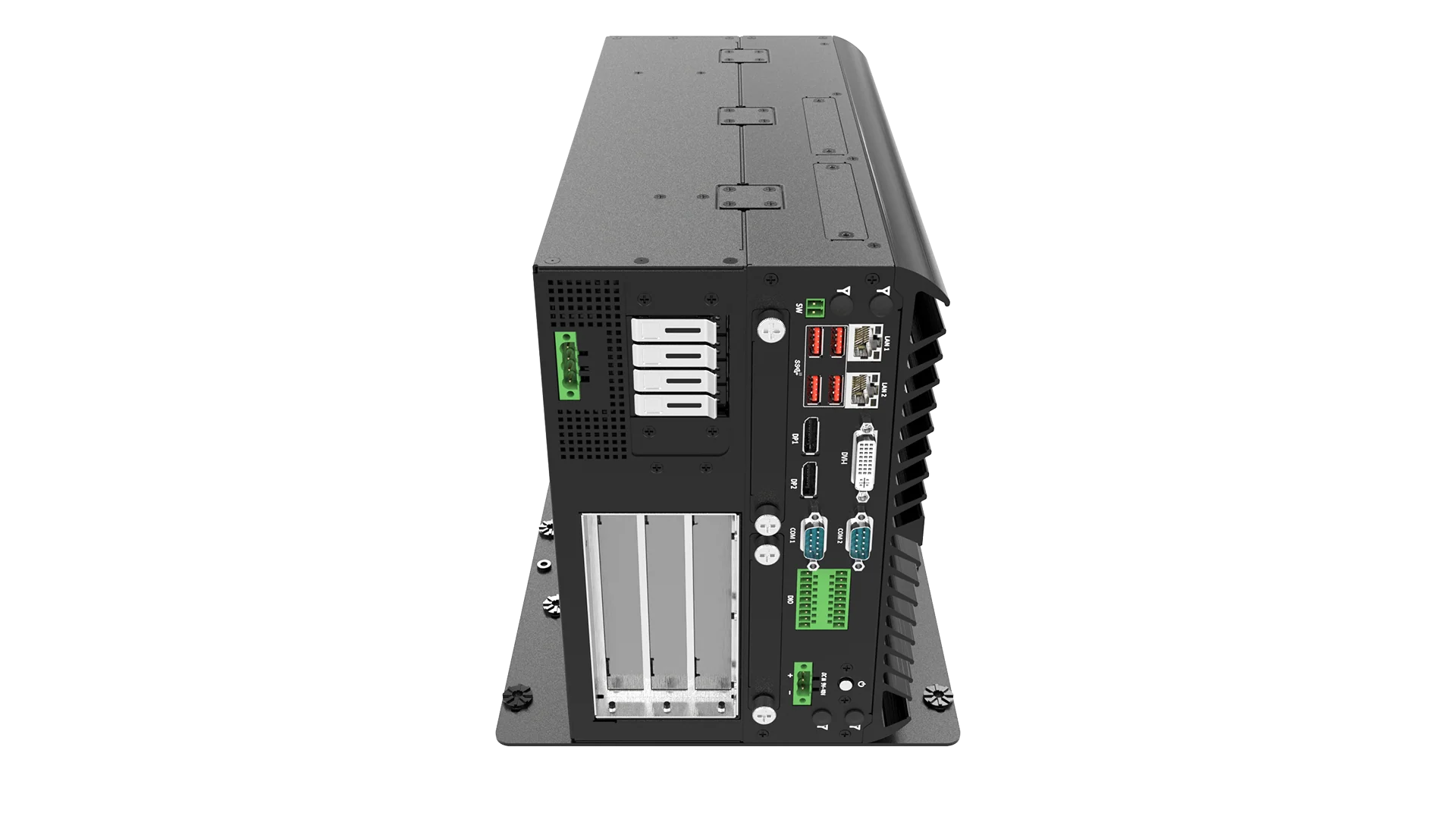

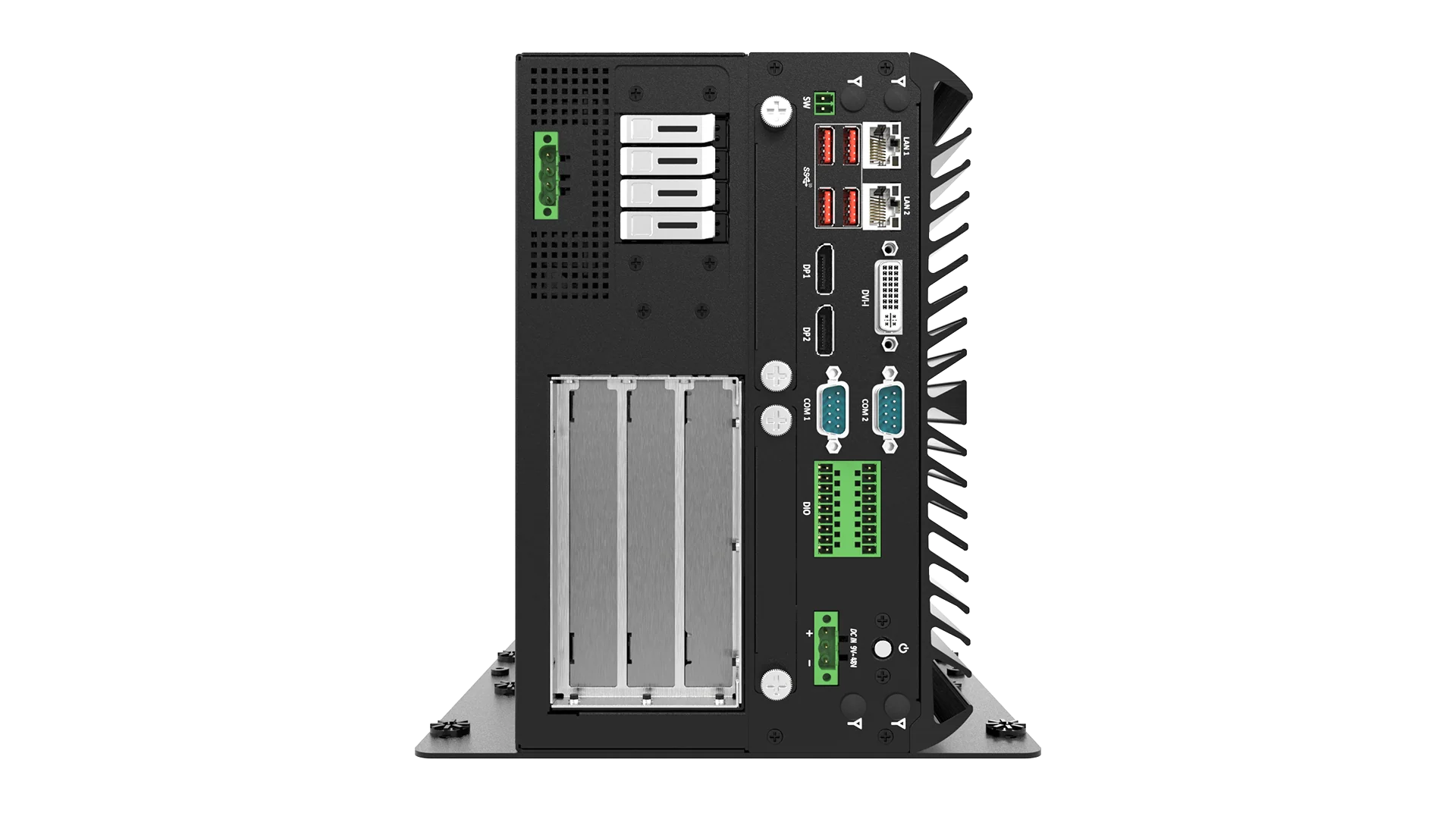

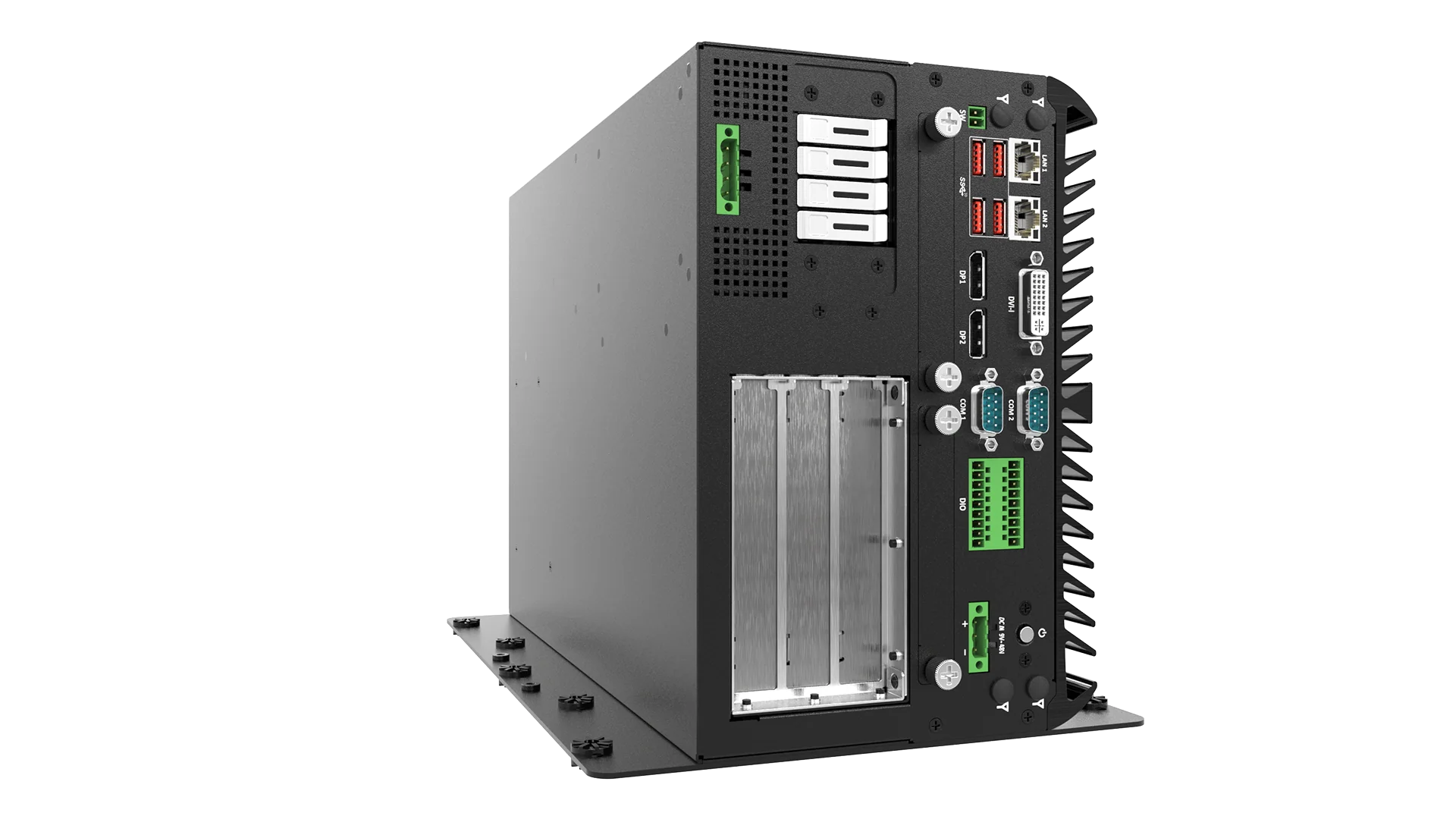

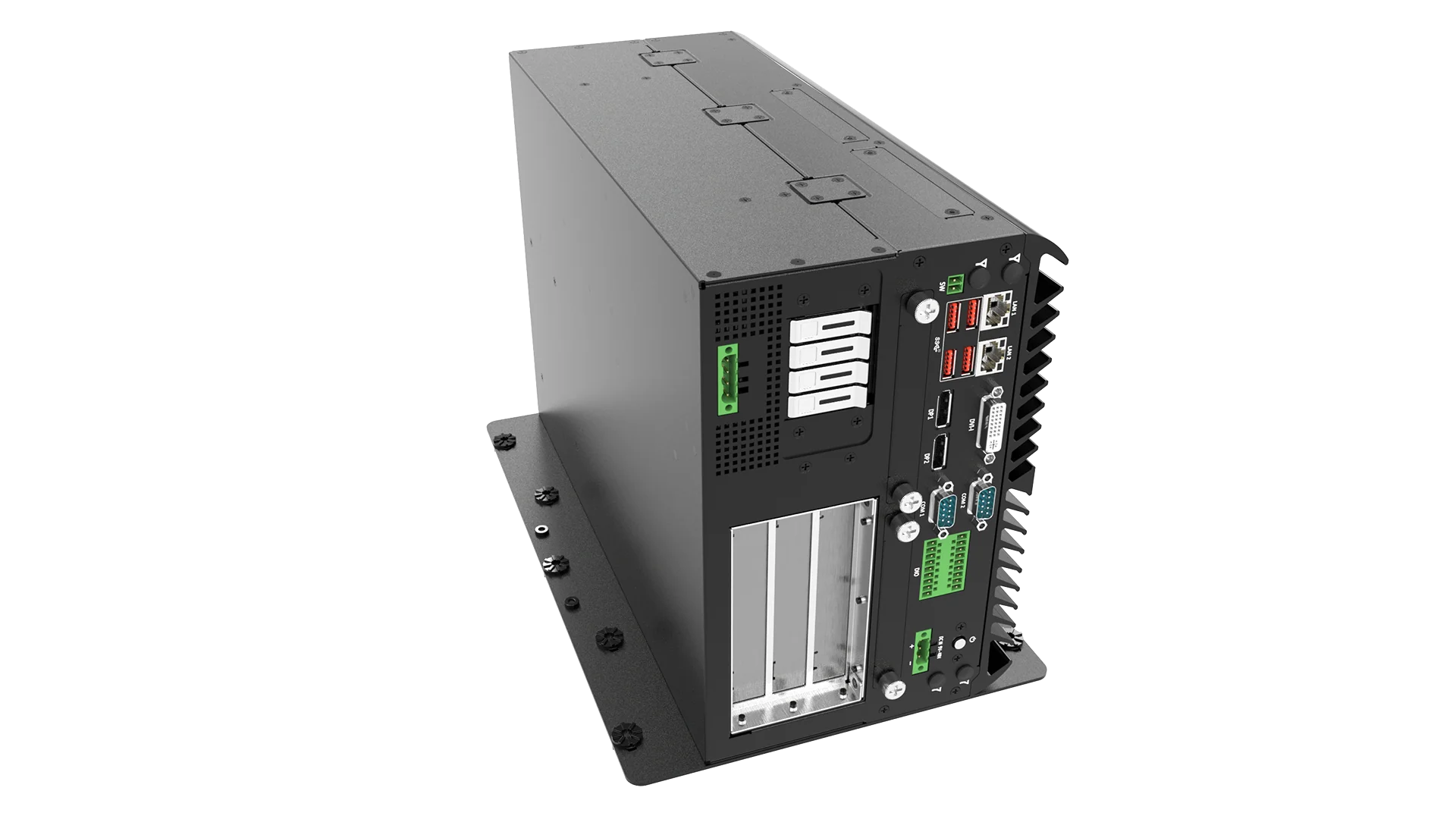

VCO-6000-CFL-4M2 Machine Vision Computer with 9th Gen Intel® Core™ Processor, 4x Hotswap M.2 NVMe

Product image 1
1 / 9

VCO-6000-CFL-4M2 Machine Vision Computer with 9th Gen Intel® Core™ Processor, 4x Hotswap M.2 NVMe

  • Support 9th Gen. Intel® CFL-R S Processor (LGA 1151, 35W TDP)
  • Intel® Q370 chipset
  • 2x DDR4 2400/2666Hz SODIMM. Max. up to 64GB
  • Triple Independent Display by 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x Full-size mini PCIe (shared by 1x mSATA), 1x PCIe x16, and 4x M.2 (x8), 2x SIM socket
  • 4x 2.5" SATA HDD bay with RAID 0, 1, 5, 10 support, 1x mSATA (shared by 1x Mini PCIe)
  • 1x M.2 (M Key, NVMe PCIe x4, 2280); 1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi)
  • 4x RS-232/422/485 (w/ 2x internal), 4x USB 3.1 Gen 2 (10Gbps)
  • 8x DI + 8x DO with isolation
  • 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature (-25°C to 60°C)
  • TPM 2.0 Supported
$687.00

Original: $2,290.00

-70%
VCO-6000-CFL-4M2 Machine Vision Computer with 9th Gen Intel® Core™ Processor, 4x Hotswap M.2 NVMe—

$2,290.00

$687.00

Product Information

Shipping & Returns

Description

  • Support 9th Gen. Intel® CFL-R S Processor (LGA 1151, 35W TDP)
  • Intel® Q370 chipset
  • 2x DDR4 2400/2666Hz SODIMM. Max. up to 64GB
  • Triple Independent Display by 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x Full-size mini PCIe (shared by 1x mSATA), 1x PCIe x16, and 4x M.2 (x8), 2x SIM socket
  • 4x 2.5" SATA HDD bay with RAID 0, 1, 5, 10 support, 1x mSATA (shared by 1x Mini PCIe)
  • 1x M.2 (M Key, NVMe PCIe x4, 2280); 1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi)
  • 4x RS-232/422/485 (w/ 2x internal), 4x USB 3.1 Gen 2 (10Gbps)
  • 8x DI + 8x DO with isolation
  • 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature (-25°C to 60°C)
  • TPM 2.0 Supported
