VCO-6000-CFL-3-2PWR Machine Vision Computer with 9th Gen Intel® Core™ Processor, 3x PCIe Expansion, Dual Power Input

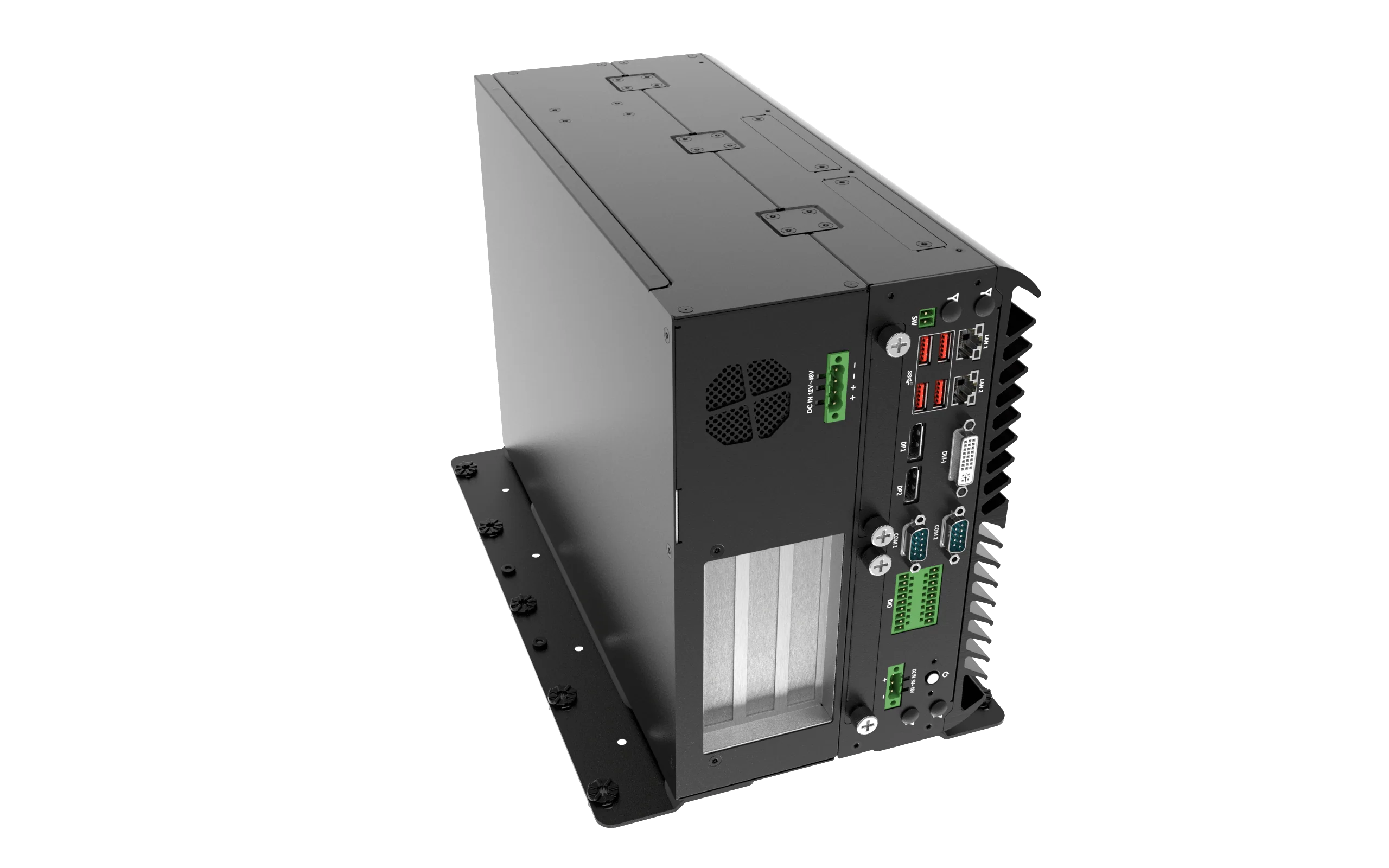

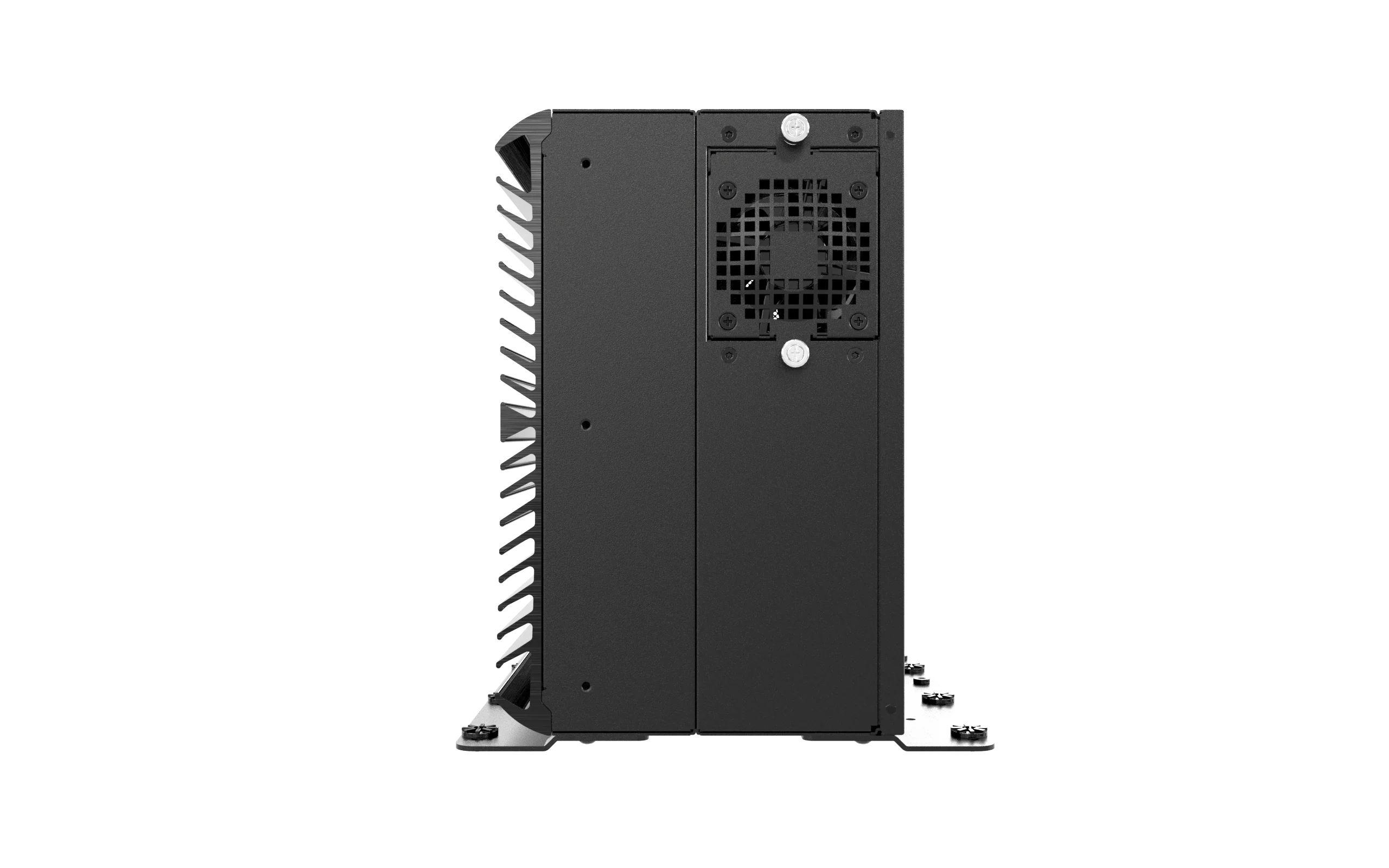

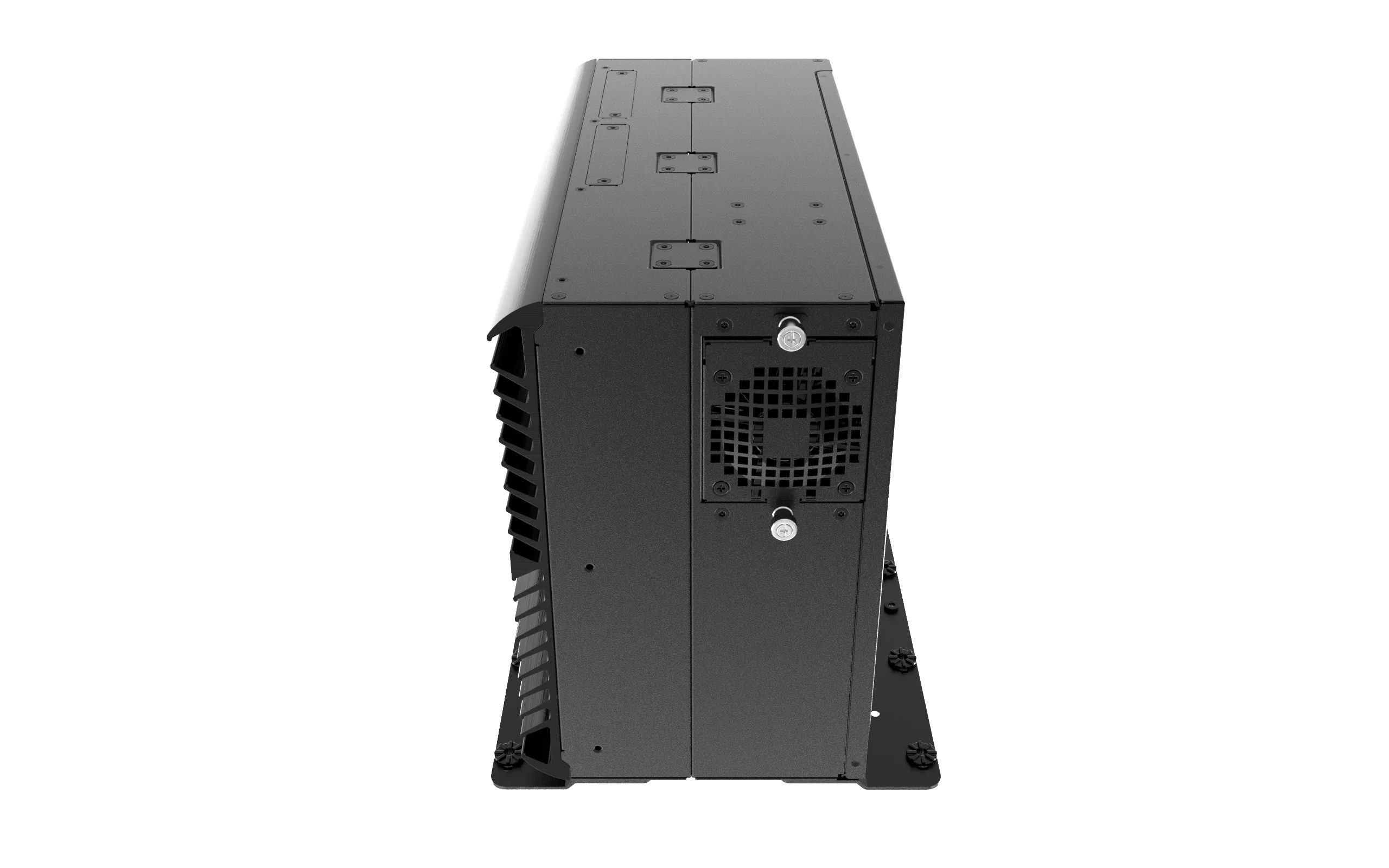

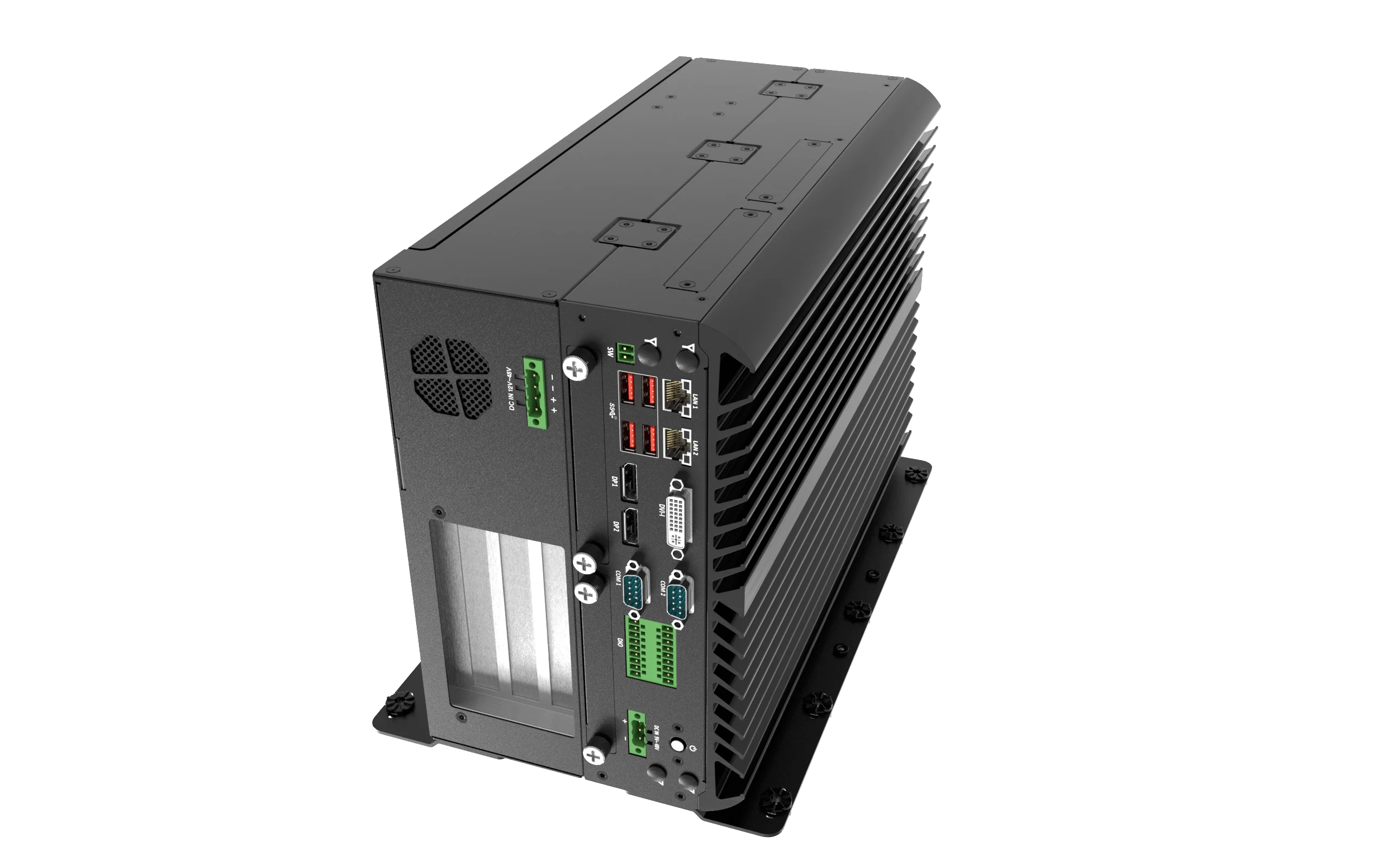

Product image 1
1 / 10

VCO-6000-CFL-3-2PWR Machine Vision Computer with 9th Gen Intel® Core™ Processor, 3x PCIe Expansion, Dual Power Input

  • Support 9th Gen Intel® CFL-R S Processor (LGA 1151, 35W TDP)
  • Intel® Q370 Chipset
  • Triple Independent Display by 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x Full-size mini PCIe (shared by 1x mSATA), and 2x SIM socket
  • 4x 2.5” SATA HDD Bay with RAID 0, 1, 5, 10 support,1x mSATA (Shared by 1x Mini PCIe)
  • 1x M.2 (M Key, NVMe PCIe x4, 2280), 1x M.2 (E Key, PCIe x2, USB 2.0, 2230, Support CNVi)
  • 6x RS-232/422/485 (4x internal)
  • 4x USB 3.2 Gen 2 (10 Gbps), 4x USB 3.2 Gen 1 (5 Gbps, internal)
  • 8x DI + 8x DO with isolation
  • 9 to 48V DC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature (-25°C to 70°C)
  • TPM 2.0 Supported
$615.60

Original: $2,052.00

-70%
VCO-6000-CFL-3-2PWR Machine Vision Computer with 9th Gen Intel® Core™ Processor, 3x PCIe Expansion, Dual Power Input—

$2,052.00

$615.60

Product Information

Shipping & Returns

Description

  • Support 9th Gen Intel® CFL-R S Processor (LGA 1151, 35W TDP)
  • Intel® Q370 Chipset
  • Triple Independent Display by 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x Full-size mini PCIe (shared by 1x mSATA), and 2x SIM socket
  • 4x 2.5” SATA HDD Bay with RAID 0, 1, 5, 10 support,1x mSATA (Shared by 1x Mini PCIe)
  • 1x M.2 (M Key, NVMe PCIe x4, 2280), 1x M.2 (E Key, PCIe x2, USB 2.0, 2230, Support CNVi)
  • 6x RS-232/422/485 (4x internal)
  • 4x USB 3.2 Gen 2 (10 Gbps), 4x USB 3.2 Gen 1 (5 Gbps, internal)
  • 8x DI + 8x DO with isolation
  • 9 to 48V DC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature (-25°C to 70°C)
  • TPM 2.0 Supported
